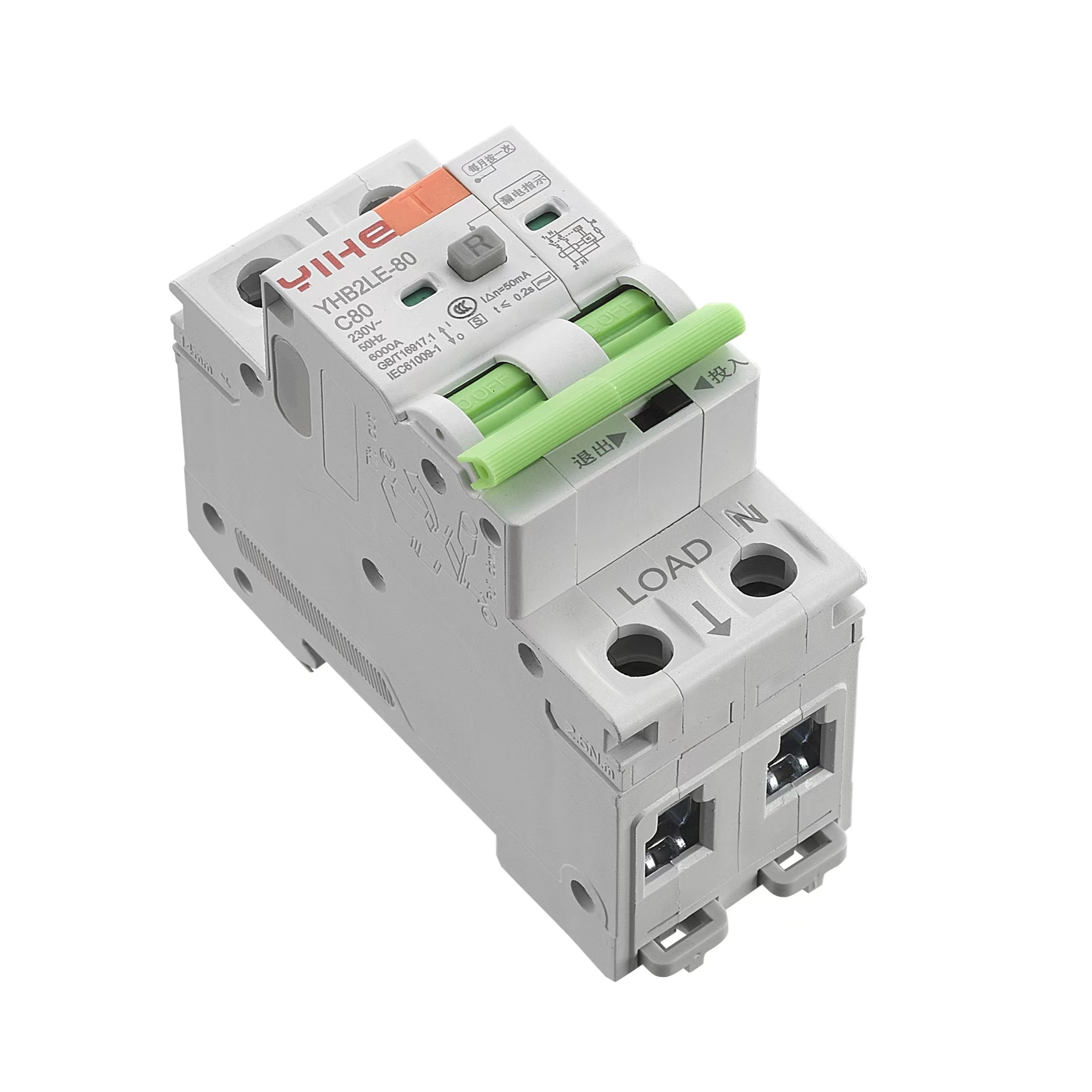

Intro：The main technical parameters accord with I EC61009 -1 standard parameters 1.High breaking capacity, strong practicability of accessories. 2.Combined terminal with touch protection and red and green safety indication, higher safety 3.Current limiting contact system to avoid short circuit current of products and equipment, Increase the service life of monthly equipment. 4.shell and some functional parts are imported and exported high ? ame retardant, high temperature resistance, impact resistant plastics made o 5.The appearance is beautiful, the volume is small, the width is only 36mm 6. Leakage function may withdraw, suitable each kind of place. 7.May make the rated leakage action current adjustable. 8.L pole N pole to have the overload protection function. 9.Rated current In：1A,2A,3A,4A,6A,10A,13A,16A,20A,25A,32A,40A,50A,63A,80A 10.Width：18mm per pole 11.Number of poles：2poles, 4poles 230/400V 12.Rated insulation voltage Ui: 500V 13.Rated residual action current I△ n mA : 10mA、15mA
